-- Provide Moho with the name of this script object
-- **************************************************
ScriptName = "LK_TimelineNavigator"
-- **************************************************
-- General information about this script
-- **************************************************
LK_TimelineNavigator = {}
function LK_TimelineNavigator:Name()
return "Timeline Navigator"
end
function LK_TimelineNavigator:Version()
return "2.3"
end
function LK_TimelineNavigator:UILabel()
return "Timeline Navigator"
end
function LK_TimelineNavigator:Creator()
return "Lukas Krepel, Frame Order - Original by Stan"
end
function LK_TimelineNavigator:Description()
return "Move the timeline cursor by specified amount of frames or time intervals and jump to document markers. Press <"..self.previousMarkerShortcut.."/"..self.nextMarkerShortcut.."> to jump to previous/next marker."
end
function LK_TimelineNavigator:ColorizeIcon()
return true
end
-- **************************************************
-- Is Relevant / Is Enabled
-- **************************************************
function LK_TimelineNavigator:IsRelevant(moho)
if MohoMode ~= nil then
if not MohoMode.keys then
return false
end
end
return true
end
function LK_TimelineNavigator:IsEnabled(moho)
return true
end
-- **************************************************
-- Keyboard/Mouse Control
-- **************************************************
function LK_TimelineNavigator:OnMouseDown(moho, mouseEvent)
if Syn_ScrubWorkspace ~= nil then
Syn_ScrubWorkspace:OnMouseDown(moho, mouseEvent)
end
end
function LK_TimelineNavigator:OnMouseMoved(moho, mouseEvent)
if Syn_ScrubWorkspace ~= nil then
Syn_ScrubWorkspace:OnMouseMoved(moho, mouseEvent)
end
end
function LK_TimelineNavigator:OnMouseUp(moho, mouseEvent)
if Syn_ScrubWorkspace ~= nil then
Syn_ScrubWorkspace:OnMouseUp(moho, mouseEvent)
end
end
function LK_TimelineNavigator:OnKeyDown(moho, keyEvent)
if keyEvent.key == self.nextMarkerShortcut then
self:GoToNextmarker(moho, false)
end
if keyEvent.key == self.previousMarkerShortcut then
self:GoToNextmarker(moho, true)
end
end
-- **************************************************
-- Recurring Values
-- **************************************************
LK_TimelineNavigator.frames = 1
LK_TimelineNavigator.seconds = 1
LK_TimelineNavigator.timeMinutes = 0
LK_TimelineNavigator.timeSeconds = 0
LK_TimelineNavigator.timeFrames = 0
LK_TimelineNavigator.previousMarkerShortcut = ","
LK_TimelineNavigator.nextMarkerShortcut = "."
LK_TimelineNavigator.markerLevelOptions = { "Document", "Layer" } -- * TODO: Both / Parent / Any layer ?
-- **************************************************
-- Tool options - create and respond to tool's UI
-- **************************************************
LK_TimelineNavigator.FRAMES_BACK = MOHO.MSG_BASE
LK_TimelineNavigator.FRAMES_INPUT = MOHO.MSG_BASE + 1
LK_TimelineNavigator.FRAMES_FORWARD = MOHO.MSG_BASE + 2
LK_TimelineNavigator.SECONDS_BACK = MOHO.MSG_BASE + 3
LK_TimelineNavigator.SECONDS_INPUT = MOHO.MSG_BASE + 4
LK_TimelineNavigator.SECONDS_FORWARD = MOHO.MSG_BASE + 5
LK_TimelineNavigator.TIME_MINUTES_INPUT = MOHO.MSG_BASE + 6
LK_TimelineNavigator.TIME_SECONDS_INPUT = MOHO.MSG_BASE + 7
LK_TimelineNavigator.TIME_FRAMES_INPUT = MOHO.MSG_BASE + 8
LK_TimelineNavigator.TIME_GO = MOHO.MSG_BASE + 9
LK_TimelineNavigator.GO_TO_FRAME_ZERO = MOHO.MSG_BASE + 10
LK_TimelineNavigator.PREV_MARKER = MOHO.MSG_BASE + 13
LK_TimelineNavigator.NEXT_MARKER = MOHO.MSG_BASE + 14
LK_TimelineNavigator.GO_TO_DOCUMENT_START = MOHO.MSG_BASE + 15
LK_TimelineNavigator.GO_TO_DOCUMENT_END = MOHO.MSG_BASE + 16
LK_TimelineNavigator.SET_MARKER_LEVEL = MOHO.MSG_BASE + 17 -- * 17 to 30
LK_TimelineNavigator.GO_TO_MARKER = MOHO.MSG_BASE + 30 -- * 30 to x
function LK_TimelineNavigator:LoadPrefs(prefs)
self.markerLevel = prefs:GetString("LK_TimelineNavigator.markerLevel", self.markerLevelOptions[1])
self.frames = prefs:GetInt("LK_TimelineNavigator.frames", 1)
self.seconds = prefs:GetInt("LK_TimelineNavigator.seconds", 1)
self.timeMinutes = prefs:GetInt("LK_TimelineNavigator.timeMinutes", 0)
self.timeSeconds = prefs:GetInt("LK_TimelineNavigator.timeSeconds", 0)
self.timeFrames = prefs:GetInt("LK_TimelineNavigator.timeFrames", 0)
end
function LK_TimelineNavigator:SavePrefs(prefs)
prefs:SetString("LK_TimelineNavigator.markerLevel", self.markerLevel)
prefs:SetInt("LK_TimelineNavigator.frames", self.frames)
prefs:SetInt("LK_TimelineNavigator.seconds", self.seconds)
prefs:SetInt("LK_TimelineNavigator.timeMinutes", self.timeMinutes)
prefs:SetInt("LK_TimelineNavigator.timeSeconds", self.timeSeconds)
prefs:SetInt("LK_TimelineNavigator.timeFrames", self.timeFrames)
end
function LK_TimelineNavigator:ResetPrefs(prefs)
self.markerLevel = self.markerLevelOptions[1]
self.frames = 1
self.seconds = 1
self.timeMinutes = 0
self.timeSeconds = 0
self.timeFrames = 0
end
-- **************************************************
-- Tool Panel Layout
-- **************************************************
function LK_TimelineNavigator:DoLayout(moho, layout)
self.markerChannel = moho.layer.fTimelineMarkers
-- *** Move x amount of frames left/right:
FO_Utilities:Divider(layout, "Move frame(s)", true)
layout:AddPadding(-15)
self.framesInput = LM.GUI.TextControl(48, '1', self.FRAMES_INPUT, LM.GUI.FIELD_UINT)
layout:AddChild(self.framesInput)
layout:AddPadding(-15)
self.framesBackButton = LM.GUI.ImageButton("ScriptResources/FO_icons/arrow_left", "Back", false, self.FRAMES_BACK, true)
layout:AddChild(self.framesBackButton)
self.framesForwardButton = LM.GUI.ImageButton("ScriptResources/FO_icons/arrow_right", "Forward", false, self.FRAMES_FORWARD, true)
layout:AddChild(self.framesForwardButton)
-- *** Move x amount of seconds left/right:
FO_Utilities:Divider(layout, "Move second(s)")
layout:AddPadding(-15)
self.secondsInput = LM.GUI.TextControl(48, '1', self.SECONDS_INPUT, LM.GUI.FIELD_UFLOAT)
layout:AddChild(self.secondsInput)
layout:AddPadding(-15)
self.secondsBackButton = LM.GUI.ImageButton("ScriptResources/FO_icons/arrow_left", "Back", false, self.SECONDS_BACK, true)
layout:AddChild(self.secondsBackButton)
self.secondsForwardButton = LM.GUI.ImageButton("ScriptResources/FO_icons/arrow_right", "Forward", false, self.SECONDS_FORWARD, true)
layout:AddChild(self.secondsForwardButton)
-- *** Go to specified timecode or frame:
FO_Utilities:Divider(layout, "Go to (MM:SS:FF)")
self.timeMinutesInput = LM.GUI.TextControl(28, '0', self.TIME_MINUTES_INPUT, LM.GUI.FIELD_UINT)
layout:AddChild(self.timeMinutesInput)
layout:AddPadding(-15)
layout:AddChild(LM.GUI.StaticText(':'))
layout:AddPadding(-19)
self.timeSecondsInput = LM.GUI.TextControl(28, '0', self.TIME_SECONDS_INPUT, LM.GUI.FIELD_UINT)
layout:AddChild(self.timeSecondsInput)
layout:AddPadding(-15)
layout:AddChild(LM.GUI.StaticText(':'))
layout:AddPadding(-19)
self.timeFramesInput = LM.GUI.TextControl(28, '0', self.TIME_FRAMES_INPUT, LM.GUI.FIELD_UINT)
layout:AddChild(self.timeFramesInput)
layout:AddPadding(-15)
self.goButton = LM.GUI.ImageButton("ScriptResources/FO_icons/Set", "Go", false, self.TIME_GO, true)
layout:AddChild(self.goButton)
-- *******************************

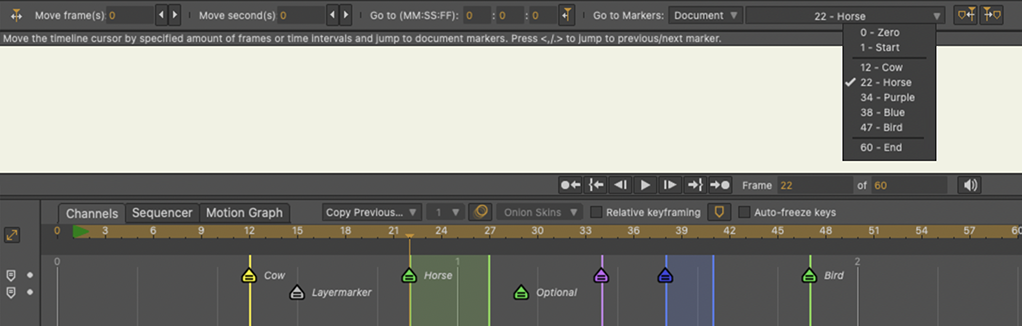

-- *** Go to Markers: ***
-- *******************************
FO_Utilities:Divider(layout, "Go to Markers")
-- *** Level Dropdown:
-- * Level Dropdown:
if self.markerLevel == "" then -- * Prefs bugfix
self.markerLevel = self.markerLevelOptions[1]
end
self.levelPopup = LM.GUI.PopupMenu(75, false)
layout:AddChild(self.levelPopup)
layout:AddPadding(-14)
-- * Marker Dropdown:
self.markerPopup = LM.GUI.PopupMenu(200, false)
layout:AddChild(self.markerPopup)
-- * Previous/Next Marker:
self.prevMarkerButton = LM.GUI.ImageButton("ScriptResources/FO_icons/timeline_marker_prev", "Back", false, self.PREV_MARKER, true)
layout:AddChild(self.prevMarkerButton)
layout:AddPadding(-14)
self.nextMarkerButton = LM.GUI.ImageButton("ScriptResources/FO_icons/timeline_marker_next", "Forward", false, self.NEXT_MARKER, true)
layout:AddChild(self.nextMarkerButton)
end
function LK_TimelineNavigator:UpdateWidgets(moho)
if moho:IsPlaying() then
return
end
FO_Utilities.tinyUI = false
self.framesInput:SetValue(self.frames)
self.secondsInput:SetValue(self.seconds)
self.timeMinutesInput:SetValue(self.timeMinutes)
self.timeSecondsInput:SetValue(self.timeSeconds)
self.timeFramesInput:SetValue(self.timeFrames)
if self.markerLevel == "Document" then
self.markerChannel = moho.document.fTimelineMarkers
else
self.markerChannel = moho.layer.fTimelineMarkers
end
-- *** Marker Dropdown:
local markerChannel = self.markerChannel
local markerLabel = ""
if moho.frame == 0 then
markerLabel = " - Zero"
elseif moho.frame == moho.document:StartFrame() then
markerLabel = " - Start"
elseif moho.frame == moho.document:EndFrame() then
markerLabel = " - End"
elseif markerChannel:HasKey(moho.frame) then
markerLabel = markerChannel:GetValue(moho.frame)
markerLabel = string.gsub(markerLabel, "\n", " ")
markerLabel = " - "..markerLabel
if markerChannel:GetValue(moho.frame) == "" then
local markerInterp = MOHO.InterpSetting:new_local()
markerChannel:GetKeyInterp(moho.frame, markerInterp)
markerLabel = " - "..FO_Utilities.colorNames[markerInterp.tags]
end
end
local menuLabel = string.format("%d", moho.frame)..markerLabel
self.markerMenu = LM.GUI.Menu(menuLabel)
-- *** Dropdown items:
-- * Zero:
self.markerMenu:AddItem("0 - Zero", 0, self.GO_TO_FRAME_ZERO)
-- * Start:
local startFrame = moho.document:StartFrame().." - Start"
self.markerMenu:AddItem(startFrame, 0, self.GO_TO_DOCUMENT_START)
self.markerMenu:AddItem("---", 0, 0)
-- * Markers:
local markers = {}
for i = 1, markerChannel:CountKeys()-1 do
local markerFrame = markerChannel:GetKeyWhen(i)
markerFrame = string.format("%d", markerFrame) -- Remove .0 from 1.0
local markerLabel = markerChannel:GetValueByID(i)
markerLabel = string.gsub(markerLabel, "\n", " ")
if markerLabel == "" then
local markerInterp = MOHO.InterpSetting:new_local()
markerChannel:GetKeyInterp(markerChannel:GetKeyWhen(i), markerInterp)
markerLabel = FO_Utilities.colorNames[markerInterp.tags]
end
local marker = markerFrame.." - "..markerLabel
table.insert(markers, marker)
end
local i
for i = 1, #markers do
local file = markers[i]
self.markerMenu:AddItem((tostring(markers[i])), 0, (self.GO_TO_MARKER + i))
end
if #markers ~= 0 then
self.markerMenu:AddItem("---", 0, 0)
end
-- * End:
local endFrame = moho.document:EndFrame().." - End"
self.markerMenu:AddItem(endFrame, 0, self.GO_TO_DOCUMENT_END)
-- *** Checks:
self.markerMenu:SetChecked(self.GO_TO_DOCUMENT_START, moho.document:StartFrame() == moho.frame)
for i = 1, markerChannel:CountKeys()-1 do
local markerFrame = markerChannel:GetKeyWhen(i)
self.markerMenu:SetChecked(self.GO_TO_MARKER + i, moho.frame == markerFrame)
end
self.markerMenu:SetChecked(self.GO_TO_DOCUMENT_END, moho.document:EndFrame() == moho.frame)
-- * Set menu to dropdown:
self.markerPopup:SetMenu(self.markerMenu)
self.markerPopup:Redraw()
-- * Level Menu:
self.levelMenu = LM.GUI.Menu(self.markerLevel)
for i = 1, #self.markerLevelOptions do
local option = self.markerLevelOptions[i]
self.levelMenu:AddItem(option, 0, self.SET_MARKER_LEVEL+i)
self.levelMenu:SetChecked(self.SET_MARKER_LEVEL+i, self.markerLevel == option)
end
self.levelPopup:SetMenu(self.levelMenu)
self.levelPopup:Redraw()
end
function LK_TimelineNavigator:HandleMessage(moho, view, msg)
local curFrame = moho.frame
local fps = moho.document:Fps()
self.frames = self.framesInput:IntValue()
self.seconds = self.secondsInput:FloatValue()
self.timeMinutes = self.timeMinutesInput:IntValue()
self.timeSeconds = LM.Clamp(self.timeSecondsInput:IntValue(), 0, 59)
self.timeFrames = self.timeFramesInput:IntValue()
if msg == self.GO_TO_FRAME_ZERO then
moho:SetCurFrame(0)
elseif msg == self.GO_TO_DOCUMENT_START then
moho:SetCurFrame(moho.document:StartFrame())
elseif msg == self.GO_TO_DOCUMENT_END then
moho:SetCurFrame(moho.document:EndFrame())
elseif msg >= self.GO_TO_MARKER then
local option = msg - self.GO_TO_MARKER
moho:SetCurFrame(self.markerChannel:GetKeyWhen(option))
elseif msg == self.PREV_LAYER_MARKER then
self:GoToNextLayerMarker(moho, true)
elseif msg == self.NEXT_LAYER_MARKER then
self:GoToNextLayerMarker(moho, false)
elseif msg == self.PREV_MARKER then
self:GoToNextmarker(moho, true)
elseif msg == self.NEXT_MARKER then
self:GoToNextmarker(moho, false)
elseif msg == self.FRAMES_BACK then
local newFrame = curFrame - self.frames
if newFrame < 0 then newFrame = 0 end
moho:SetCurFrame(newFrame)
elseif msg == self.FRAMES_FORWARD then
moho:SetCurFrame(curFrame + self.frames)
elseif msg == self.SECONDS_BACK then
local frames = self.seconds * fps
local newFrame = curFrame - math.floor(frames)
if newFrame < 0 then newFrame = 0 end
moho:SetCurFrame(newFrame)
elseif msg == self.SECONDS_FORWARD then
local frames = self.seconds * fps
moho:SetCurFrame(curFrame + math.floor(frames))
elseif msg == self.TIME_GO then
local newFrame = (self.timeMinutes * 60 * fps) + (self.timeSeconds * fps) + self.timeFrames
moho:SetCurFrame(newFrame)
elseif msg == self.TIME_SECONDS_INPUT then
self.timeSecondsInput:SetValue(LM.Clamp(self.timeSecondsInput:IntValue(), 0, 59))
elseif msg >= self.SET_MARKER_LEVEL and msg < self.GO_TO_MARKER then
local option = msg - self.SET_MARKER_LEVEL
self.markerLevel = self.markerLevelOptions[option]
self:UpdateWidgets(moho)
end
end
function LK_TimelineNavigator:GoToNextmarker(moho, backwards)
backwards = backwards or false
local markerFrames = {}
local markerChannel = self.markerChannel -- * TODO
table.insert(markerFrames, moho.document:StartFrame())
table.insert(markerFrames, moho.document:EndFrame())
for markerID = 1, markerChannel:CountKeys()-1 do
local markerFrame = markerChannel:GetKeyWhen(markerID)
table.insert(markerFrames, markerFrame)
local interp = MOHO.InterpSetting:new_local()
markerChannel:GetKeyInterp(markerFrame, interp)
if interp.hold > 0 then
local holdEndFrame = markerFrame + interp.hold
table.insert(markerFrames, holdEndFrame)
end
end
local gotoFrame
if backwards then
gotoFrame = -1000000000
else
gotoFrame = 1000000000
end
for i = 1, #markerFrames do
local markerFrame = markerFrames[i]
if backwards then
if markerFrame < moho.frame and gotoFrame < markerFrame then
gotoFrame = markerFrame
end
else
if markerFrame > moho.frame and gotoFrame > markerFrame then
gotoFrame = markerFrame
end
end
end
if gotoFrame == -1000000000 or gotoFrame == 1000000000 then
return
end
moho:SetCurFrame(gotoFrame)
end
TimelineNavigator
Listed
Author: Lukas
View Script
Script type: Tool
Uploaded: Jun 25 2022, 03:42
Last modified: Sep 20 2024, 01:45
Script Version: 2.3
Jump through the timeline by amount of frames/times or to document/layer markers
Use keyboard shortcuts , and . to jump from marker to marker. It also jumps to marker ends if you're using hold interpolation on the marker keys and document start/end frames.
Based on Stan's Timeline Navigator tool.
Changelog:
- v2.0 Initial release
- v2.1 Fixed LK_Powertool error
- v2.2 Fixed MohoMode error
- v2.3 Fixed bug where framenumbers would display as floats (1.0 instead of 1)
This script, and all other scripts on this site are distributed as free software under the GNU General Public License 3.0 or later.
Downloads count: 1144
TimelineNavigator
Listed
Author: Lukas
View Script
Script type: Tool
Uploaded: Jun 25 2022, 03:42
Last modified: Sep 20 2024, 01:45
Script Version: 2.3
Jump through the timeline by amount of frames/times or to document/layer markers
Use keyboard shortcuts , and . to jump from marker to marker. It also jumps to marker ends if you're using hold interpolation on the marker keys and document start/end frames.
Based on Stan's Timeline Navigator tool.
Changelog:
- v2.0 Initial release
- v2.1 Fixed LK_Powertool error
- v2.2 Fixed MohoMode error
- v2.3 Fixed bug where framenumbers would display as floats (1.0 instead of 1)
This script, and all other scripts on this site are distributed as free software under the GNU General Public License 3.0 or later.
Downloads count: 1144
